2mm Titanium Alloy Wire
1. Products information
Grade : TA1,TA2,TC4,Gr7,Gr12,Gr23 ,ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding)
Diameter : 0.8-6.0mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface
Application : industrial,welding,macine parts,medical etc
Welding wire analysis%:
C <0.08
Fe <0.25
O <0.18
H <0.013
N <0.05
Ti: balance
Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days
Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity
Gr12/ErTi-12 need production,lead time 10 working days
| Common Ti Wires Tolerance |
| Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm |
| Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 |
| Length | 200-500mm | 500-1000mm | 1000-2000mm |
| Tolerance | +/-1.0 | +/-1.5 | +/-2. |
| Grade | Tensile Strength (min) | Yield strength 0.2%Offset | Elongation in 2in. or 50mm % (min) |
| Min |
| Ksi | Mpa | Ksi | Mpa |
| Gr1 | 35 | 240 | 20 | 138 | 20 |
| Gr2 | 50 | 345 | 40 | 275 | 18 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 18 |
| Gr12 | 70 | 483 | 50 | 345 | 18 |
2. Titanium wire---Three kinds of type for your choose
Titanium wire in Spool--dia<6.0mm ,if you need we can make spool wire
dia1.0-2.0mm,Precision winding,used for MIG
dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment
Titanium wire in coil--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

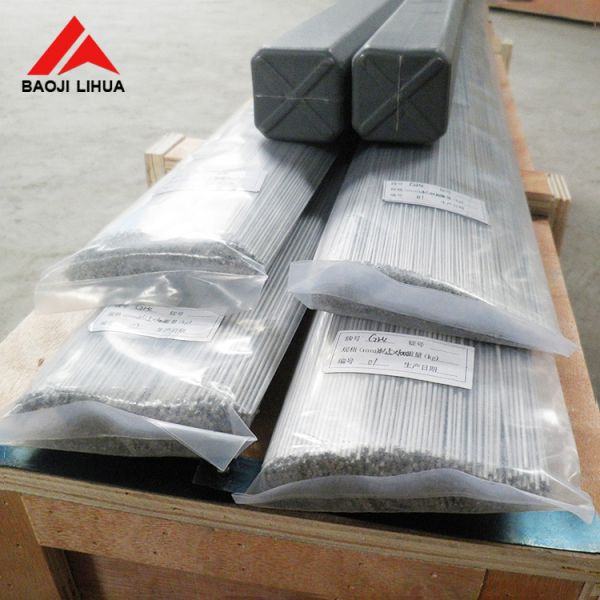

Titanium wire in straight--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)
